Description

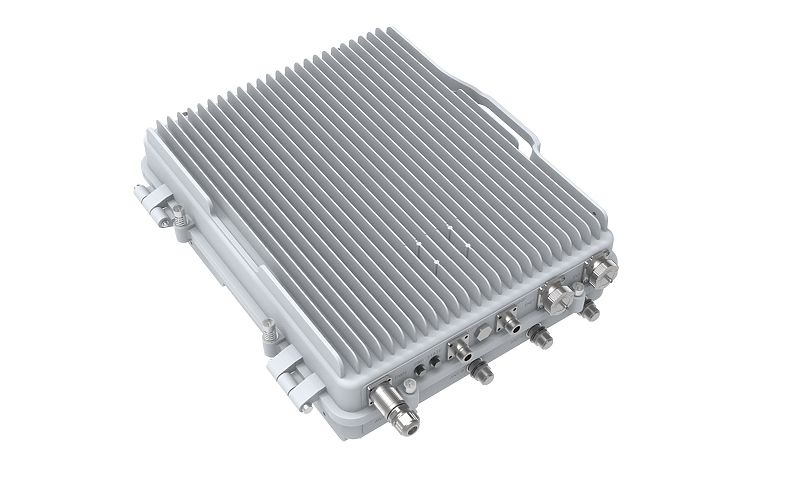

Outdoor TDD-LTE dual carriers base station for bands 38 and 39
The Intercell 10 B38+B39 is an outdoor TDD-LTE dual carriers base station with 2*(2*10W) output power (each carrier supports 2×2 MIMO with 10W output each RF channel ). The unit is compact, light weight, and easy to deploy. The Intercell 10 B38+B39 offers excellent performance, helping operators provide better coverage and higher capacity with minimal effort.
Standard TDD bands 38 and 39
Peak data rate of each carrier (20 MHz)
-DL 140Mbps (256QAM,SF2)
-UL 30Mbps (64QAM,SF1)
Peak data rate of carrier aggregation (20 MHz)
-DL 280Mbps (256QAM,SF2)
-UL 60Mbps (64QAM,SF1)
Maximum 2 * 192 RRC connected users and 2 * 96 active users
5/10/15/20 MHz operation bandwidth
All IP based backhaul, many IP backhaul methods can be used, including RJ45 Ethernet, SFP
Plug-and-play with SON features, including self-configuration/self-optimization/self-healing
High transmission power to extend NLOS coverage, low power consumption to save OPEX.
