Ubiquiti airFiber 11 GHz (AF11-Complete-LB)

Product Specification
airFiber AF-11
Dimensions 327 x 112 x 86 mm, (12.87 x 4.41 x 3.39″)
Weight 2.26 kg (5.0 lb)
RF Connectors (4) SMA Weatherproof, Two per Chain
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet, DC Power Block)
Power Supply UniFi PoE Switch
Supported Voltage Range 38-56VDC
Certifications FCC Part 101, ETSI EN 302 217
Mounting AF-11G35 Mount Compatible
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface Data (1) 10/100/1000 Ethernet Port
Networking Interface Management (1) 10/100 Ethernet Port
System
Processor INVICTUS 2 IC
Maximum Throughput 1.2+ Gbps
Encryption 128-bit AES
OS airOS F
Wireless Modes SISO/MIMO
Operating Frequency 10.7-11.7 GHz (Depends on Regulatory Region*)
Max. Conducted TX Power 30 dBm (Depends on Regulatory Region*)
Frequency Accuracy ± 1 ppm
Channel Bandwidth 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable
Programmable Uplink and Downlink Duty Cycles

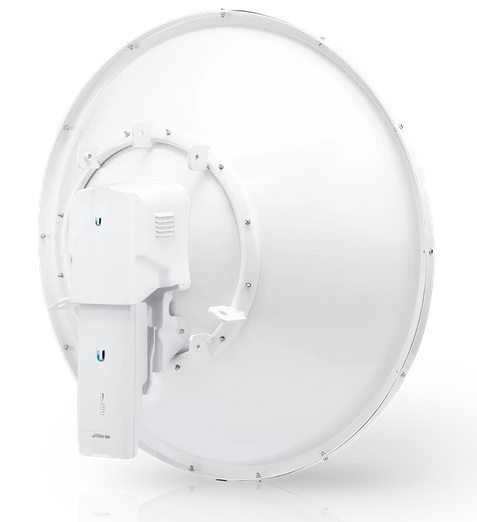

airFiber AF-11G35
Dimensions 811 x 811 x 460 mm (31.9 x 31.9 x 18.1″)
Weight (Mount Not Included) 7.14 kg (15.74 lb)
Weight (Mount Included) 11.85 kg (26.12 lb)
Frequency 10.3 to 11.7 GHz
Gain 35 dBi
HPOL Beamwidth 2.5°
VPOL Beamwidth 2.5°
Maximum VSWR 2:1
Wind Loading 1538 N @ 200 km/h (346 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
Polarization Default H/V
After Rotating OMT ± 45°
Cross-Pol Isolation 35 dB
Mounting Pole Mount
Pattern Regulatory ETSI 302 217-4-2, Class 3 and FCC Cat B
