Ubiquiti AirFiber FX 11 GHz (AF-11FX)

$0.00

Specification
Dimensions 224 x 82 x 48 mm
Weight with eqiupment 0.35 kg
Maximum power consumption < 40W Interfaces 2x RP-SMA Weatherproof (CH0, CH1) 1x SMA Weatherproof (GPS) Data 10/100/1000 Ethernet Port Management Port 10/100 Ethernet Port Power supply 24V power adapter, 1A Gigabit PoE Adapter (included) Mounting airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (included) Certifications DFS Certified FCC Part 15.407 CE EN 302502 v1.2.1, EN 301 893 v1.7.1 Operating temperature -40 to 55°C Processor INVICTUS IC Maximum throughput 500+ Mbps Maximum range Up to 150 km Wireless modes Master/Slave Operating frequency 11 GHz (Dependent on Regulatory Region) Channel bandwidth 10/20/30/40/50 MHz Max. Conducted TX Power Up to 26dBm (Dependent on Regulatory Region) Frequency Accuracy ± 2,5 ppm without GPS synchronization ± 0,2 ppm with GPS synchronization

Add to wishlist
Compare
Categories: ,
Description

Description

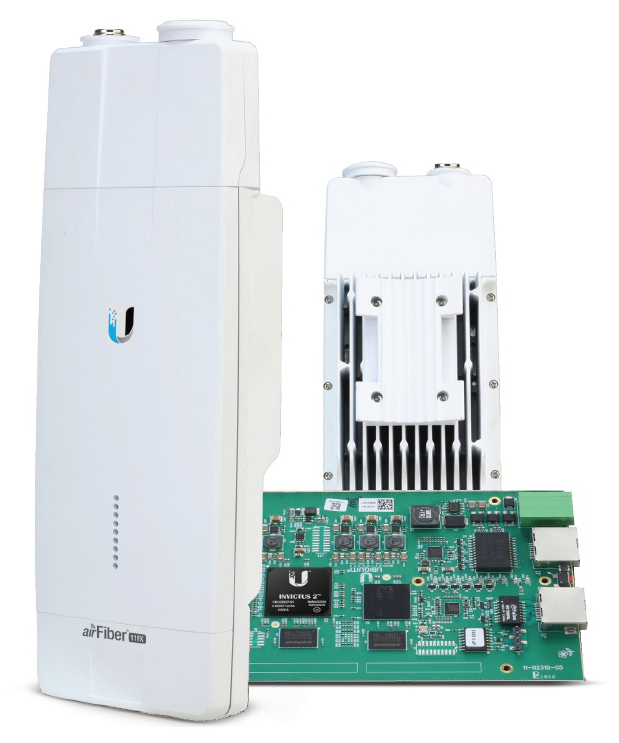

Ubiquiti AirFiber 11FX

AIRFIBER11FX-H AIRFIBER 11FX-H

AirFiber 11FX from Ubiquiti Networks is a product used to implement point-point radio link, providing high performance. It works in 11GHz band. This device is based on technology which is used in valued AirFiber 24. It is sold whitout antennas, which can be adjusted according to needs (gain from 23dBi to 34dBi).

This product does not contain any duplexer. To provide correct operation, you should decide which frequency of 11GHz band would you like to use and install adequate duplexer.

Main features:

Real throughput up to 500 Mbps in HDD mode
Maximum distance 150 km (throughput and values range can vary depending on the environmental conditions.)
Plug-and-play installation
LED display
Gigabit Ethernet RJ45
Management over dedicated Ethernet port
AirSync technology support (built-in GPS receiver)
128-Bit AES encryption

This item can correctly operate with Jirous 11GHz antennas.

Models comparison :
Model AF-4X AF-5 AF-5U AF-24 AF-24HD
Frequency 4.9 GHz 5 GHz 5 GHz 24 GHz 24 GHz
Throughput 500+ Mbps 1,2+ Gbps 1,2+ Gbps 1.4+ Gbps 2 Gbps
Range 200+ km 100+ km 100+ km 13+ km 20+ km
