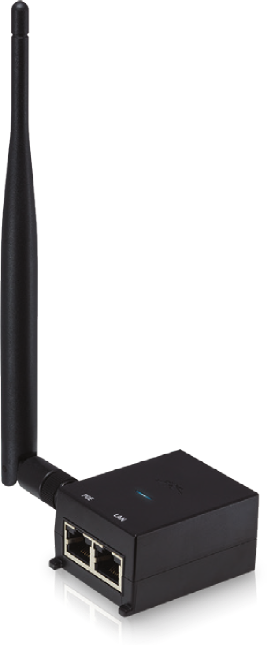

Ubiquiti airGateway-LR

Technical specification
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory 32 MB DDR1
Regulatory/Compliance Information
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Physical/Electrical/Environmental
Dimensions airGateway 54 × 44 × 30 mm
Mount: 154 × 49 × 39 mm
Weight 83 g (mount included)
Enclosure Characteristics Polycarbonate
Networking Interface (2) 10/100 Ethernet Ports
Connector (1) Male RJ-45 Connector
Buttons Reset, Reset Ext
Antenna (1) External 5 dBi
System LED Dual-Color
Wi-Fi Standards 802.11 b/g/n
Operating Frequency 2.412 GHz to 2.484 GHz
Maximum Power Consumption 4 W
Maximum TX Power 18 dBm
Power Method PoE Adapter, 15 / 18 / 24VDC (Not Included)
ESD/EMP Protection 24kV RJ-45 Interface
Operating Temperature -10 to 60°C
Operating Humidity 5 to 95% Noncondensing
Supported Data Rates
Standards Data Rates 802.11n 6.5 Mbps to 150 Mbps (MCS0 – MCS7, HT 20/40)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Add to wishlist
Compare
Categories: ,
Description

Description

airGateway LR
airGateway is an easy, affordable way to extend airMAX CPE deployments with indoor Wi-Fi. airGateway’s interlocking design and PoE passthrough make it a flexible and convenient option for airMAX users. The airGateway is an affordable product with a compact form factor. It simultaneously connects indoor client devices and powers the outdoor CPE (Customer Premises Equipment). The airGateway is available in two different models: the airGateway, which is the standard model with an internal antenna, and the airGateway-LR, which includes an external antenna for extended range.
Ubiquiti Networks airOS logo

Supported network modes

SOHO (Small Office/Home Office) Router
Router
Bridge

Supported wireless modes

Access Point
Station

Ubiquiti PSU compatibility

POE-15-12W
POE-24-12W

ESD/Surge Protection The airGateway provides an additional ±24kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.

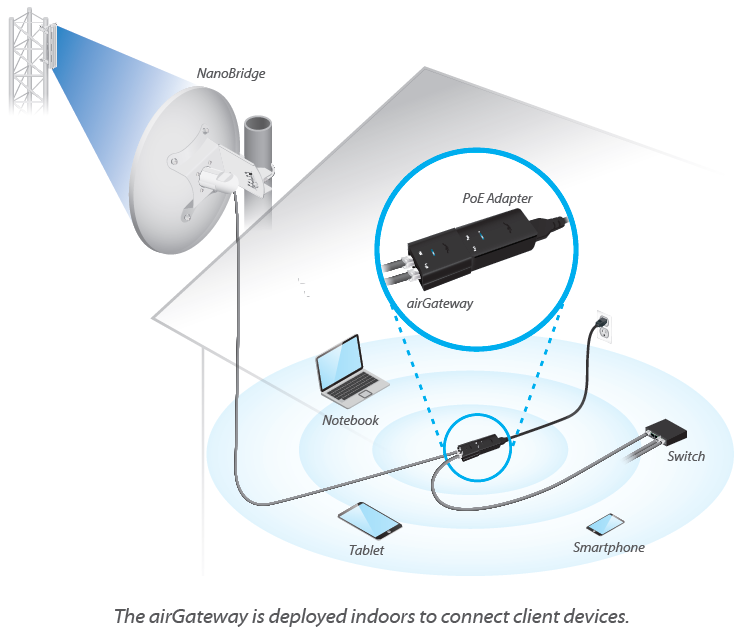

Ubiquiti Networks airGateway deployment
