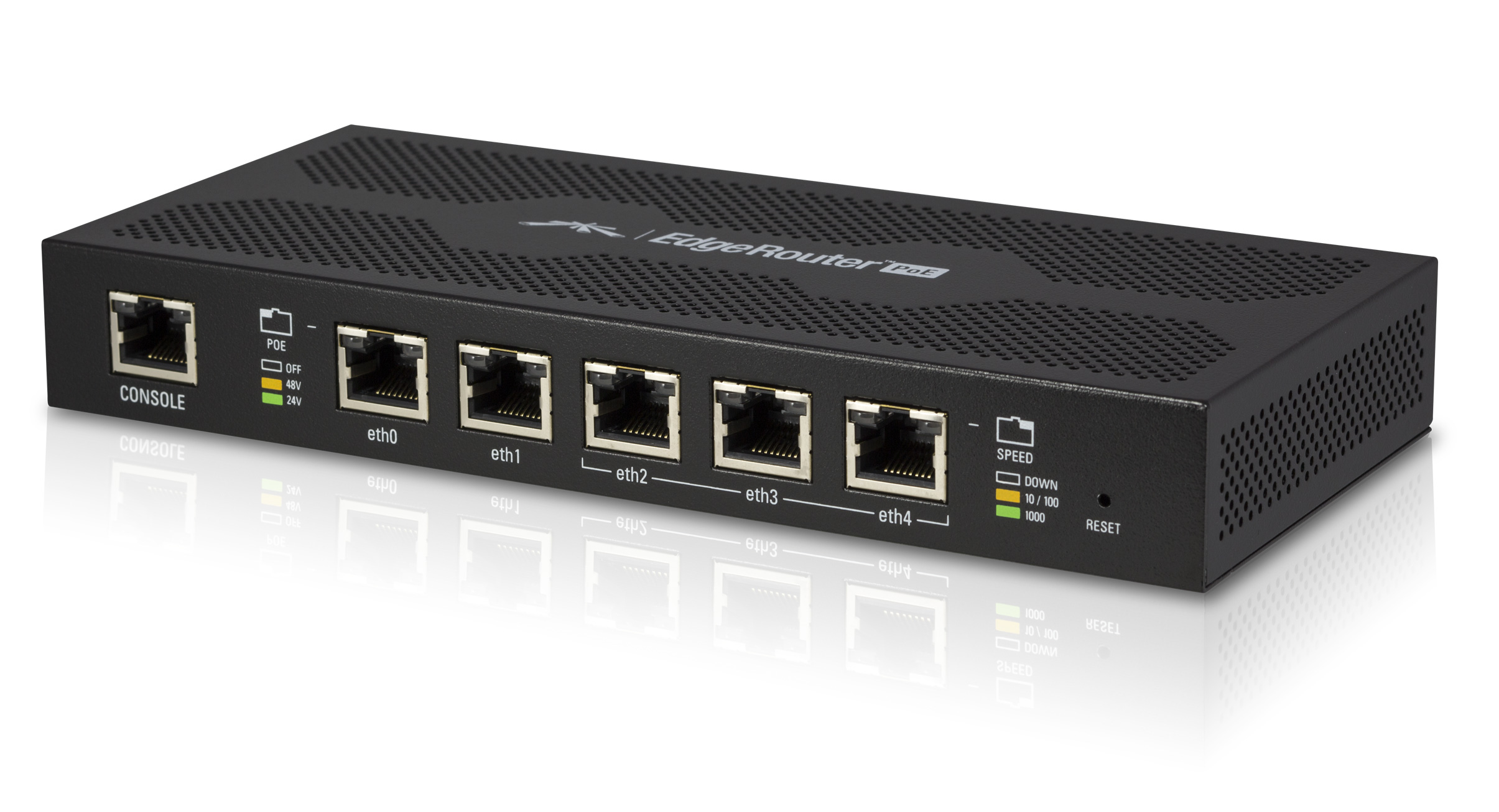

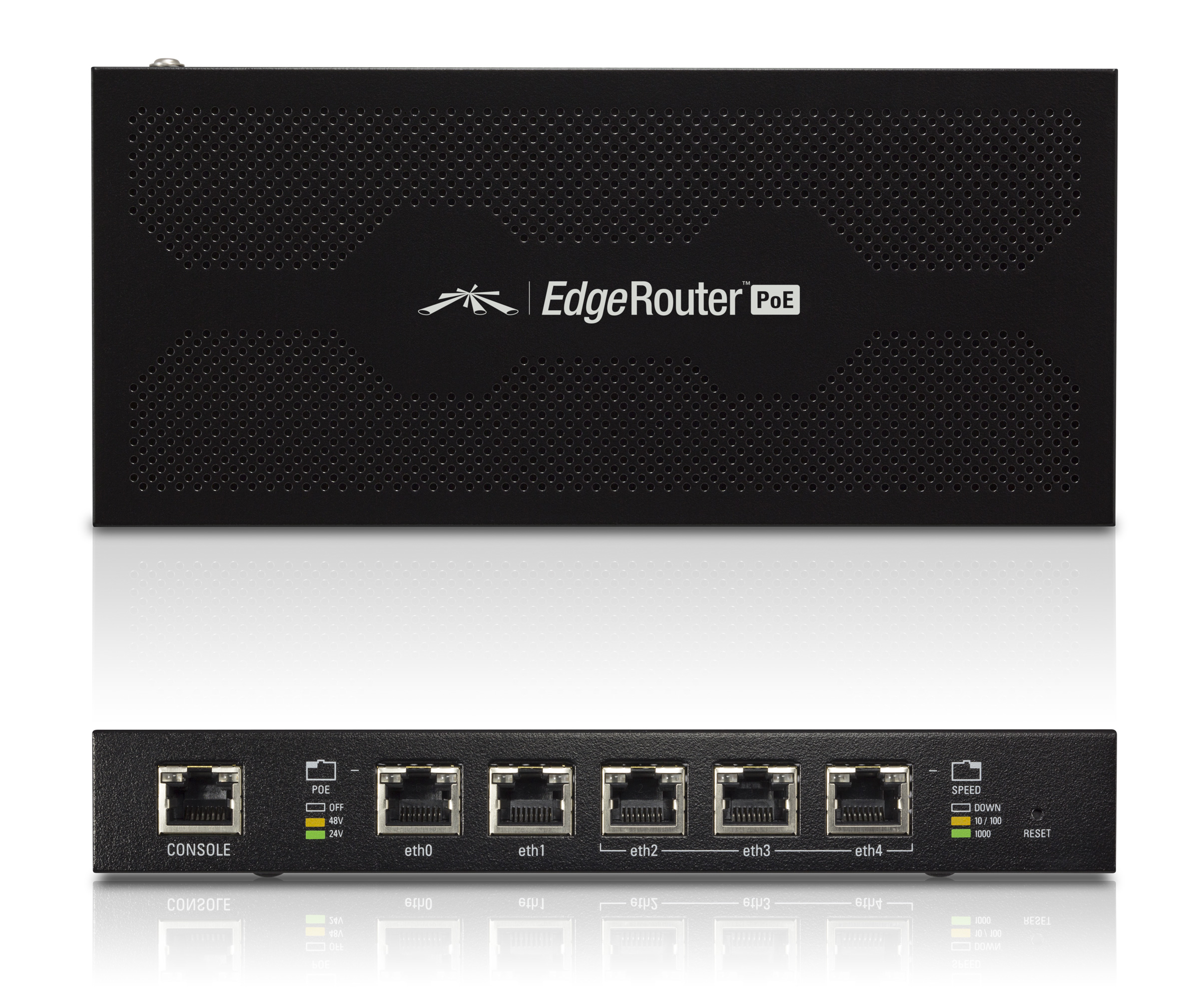

Ubiquiti EdgeRouter PoE (ERPoe-5)

Hardware Technical Specification:
Dimensions 200 × 90 × 30 mm
Weight 360 g
Power 24VDC, 2.5A Power Adapter (Included)
Power Input 24VDC Input (Supported Range: 18 to 26VDC)
or
48VDC Input (Supported Range: 38 to 54VDC)
Button Reset
Processor Dual-Core 500 MHz, MIPS64 with Hardware Acceleration
for Packet Processing
System Memory 512MB DDR2 RAM
On-Board Flash Storage 2 GB
Certifications CE, FCC, IC
Wall-Mount Yes
Operating Temperature -10 to 45°C
Operating Humidity 90% Non-Condensing
Layer 3 Forwarding Performance
Packet Size: 64 Bytes 1,000,000 pps
Packet Size: 512 Bytes or Larger 3 Gbps (Line Rate)
LEDs Per Port
Serial Console Port Power
Data Ports PoE Speed/Link/Activity
PoE Configurable Per Port
Serial Console Port N/A
Data Ports Off/24V/48V*
Networking Interfaces
Serial Console Port (1) RJ45 Serial Port
Data Ports (2) 10/100/1000 Ethernet Router Ports
(3) 10/100/1000 Ethernet Router/Switch Ports

Software Technical Specification:
Interface/Encapsulation Ethernet
802.1q VLAN
PPPoE
GRE
IP in IP
Bridging
Bonding (802.3ad)
Addressing Static IPv4/IPv6 Addressing
DHCP/DHCPv6
Routing Static Routes
OSPF/OSPFv3
RIP/RIPng
BGP (with IPv6 Support)
IGMP Proxy
Security ACL-Based Firewall
Zone-Based Firewall
NAT
VPN IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
PPTP Client
Services DHCP/DHCPv6 Server
DHCP/DHCPv6 Relay
Dynamic DNS
DNS Forwarding
VRRP
RADIUS Client
Web Caching
PPPoE Server
QoS FIFO
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ingress Policing
Management Web UI
CLI (Console, SSH, Telnet)
SNMP
NetFlow
LLDP
NTP
UBNT Discovery Protocol
Logging
