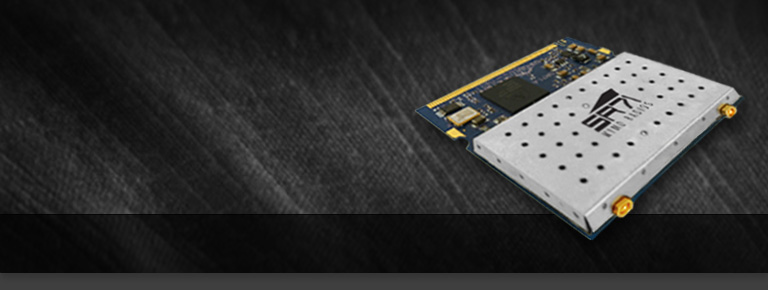

Ubiquiti :: UBNT-SR71-15 – 802.11a/n miniPCI 27dBm 5GHz

Description

UBIQUITI SR71-15

100Mbps+ TCP/IP DataRates
The Next-Generation of Power and Speed for Outdoor Applications. Link Multi-km Distances at 100Mbps+ TCP/IP DataRates.
UBIQUITI SR71-5
Chipset Atheros AR9160 with DFS SUPPORT
Radio Operation 5GHz IEEE 802.11a/n
Interface 32-bit mini-PCI Type IIIA
Operation Voltage 3.3VDC
Antenna Ports (2) MMCX for 2×2 MIMO Operation
Temperature Range -20C to +70C (extended temp version up to +95C)
Security 802.11i with AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates up to 300Mbps
TX Channel Width Support 20MHz / 40MHz
RoHS Compliance YES
Hi-Power Frequency Operation 2412-2462MHz(FCC) , 5475-5725MHz (CE), 5745-5825MHz (FCC)
Avg. TX Power 27dBm, +/-1.5dB
Max Avg. Current Consumption 1.25A, +/-100mA
RoHS Compliance YES
Indoor Range (Antenna Dependent) over 150m
Outdoor Range (Antenna Dependent) over 50km
Operating System Support Linux
