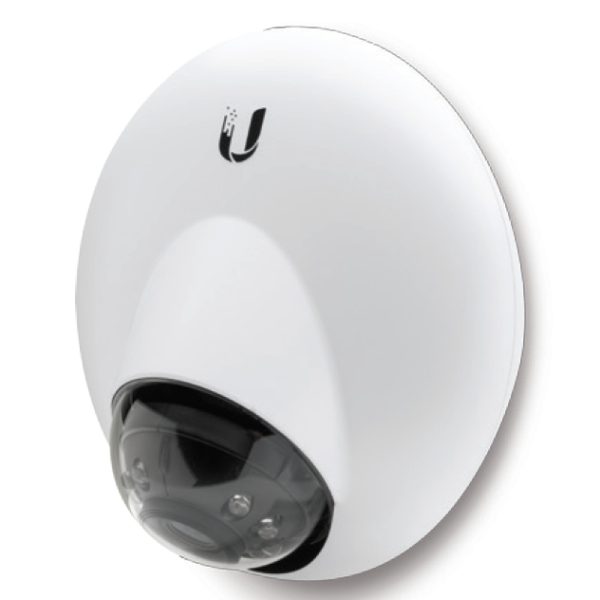

Ubiquiti UniFi Video Camera Dome G3 (UVC-G3-DOME) $0.00
Next product
Ubiquiti LiteBeam 5AC Gen2 (LBE-5AC-GEN2) $0.00
Click to enlarge

Ubiquiti UniFi NVR-PRO (UNVR-PRO)

$0.00

Technical Specification
Mechanical
Dimensions 442 x 325 x 87 mm (17.4 x 12.8 x 3.4″)
Weight Without Rackmount Brackets: 9.2 kg (20.28 lb)
With Rackmount Brackets: 9.45 kg (20.83 lb)
Enclosure Material SGCC Steel
Mount Material SGCC Steel
Hardware
Max. Power Consumption 160W
Max. Power Budget for Drives 135W
Power Method Universal AC input, 100-240VAC, 3A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5VDC, 13.91A
Power Supply AC/DC, Internal, 200W
Networking Interfaces 10/100/1000 Mbps RJ45 Ethernet
(1) 1/10 Gbps SFP+ Ethernet
RF Interface Bluetooth v4.1
LCM Display 1.3″ Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory
Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
Management Interface Ethernet In-Band Management
ESD/EMP Protection Air: ± 12kV, Contact: ± 8kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5-95% Noncondensing
Certifications CE, FCC, IC
LEDs
Ethernet White: 10/100/1000 Mbps
SFP+ White: 1/10 Gbps
HDD Amber: Disk Error, White: Disk Detected
RPS Blue: Ready

Add to wishlist
Compare
Categories: ,
Description

Description

UniFi Network Video Recorder Pro (UNVR-Pro)

The Network Video Recorder Pro (UNVR Pro) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 60 days of storage for 20 4K cameras or 60 1080p cameras).
The UNVR Pro is a UniFi OS Console that runs the pre-installed UniFi Protect application and has a 7-drive hard disk drive (HDD) bay that offers the greatest storage capacity of any UniFi OS Console. The powerful, easy-to-use UNVR Pro can be deployed in minutes and support systems with up to 60 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR Pro also offers expanded RAID configuration options for enhanced data protection, applying either RAID 1, 5, or 10 based on the number of HDDs installed. It’s also equipped with a 1.3″ touchscreen display for concise, convenient video event previewing.*

Features:

(7) 2.5″/3.5″ HDD bays
(1) 10G SFP+ port
(1) GbE RJ45 port
2U-sized, rack-mountable console (kit Included)
1.3″ touchscreen with video event previewing*
Pre-installed UniFi Protect application
Simple, Bluetooth-powered setup via the UniFi Protect mobile app
Automated RAID 1, 5, or 10 HDD configuration
Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection

Managed with the UniFi Protect application: Version 1.4.3 or later (iOS) or 1.3.9 or later (Android)
Note: Please ensure your HDDs meet Ubiquiti’s general guidelines and aren’t included in our list of incompatible models.

Will be included in a future console update
