Ubiquiti UniFi UAP-Outdoor+ (UAP-Outdoor+)

$0.00

Specification:
UniFi AP-Outdoor+
Dimensions 205 × 83 × 37 mm
Weight 250 g (without Antennas)
294 g (with Antennas)
Networking Interface 10/100 Ethernet Ports
Buttons Reset
Antennas External 5 dBi Omni Antennas Included
191 mm (Length), 13 mm (Diameter)
Wi-Fi Standards 802.11 b/g/n
Power Method Passive Power over Ethernet (48V), 802.3af Supported
Power Supply 48V, 0.5A PoE Adapter (Included)
Maximum Power Consumption 8 W
Maximum TX Power 28 dBm
BSSID Up to Four Per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -30 to 65° C
Operating Humidity 5 – 95% Non-Condensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 100+
Supported Data Rates (Mbps)
Standard Data Rates
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Add to wishlist
Compare
Categories: ,
Description

Description

Designed for noisy, high-density environments, the UAP-Outdoor+ utilizes our innovative Multi-Lane RF technology to provide superior capacity and throughput. The UAP-Outdoor+ includes two external antennas and a secondary Ethernet port for bridging. It supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft). It includes two 5dBi external antennas and 2×10/100Mbps Ethernet ports. UAP-Outdoor+ supports both 48V passive PoE and 802.3af powering options. Main features

Utilize Multi-Lane RF Technology for high-density applications
Up to 28dBm 2.4GHz 2×2 MIMO wireless interface
2x 10/100Mbps Ethernet ports
48V passive PoE and 802.3af support

UniFi Software main features

Zero Handoff Roaming
Auto-detection of new APs
Multi‑Site Management
Detailed Analytics
WLAN Groups
Wireless Uplink
Guest Portal/Hotspot Support

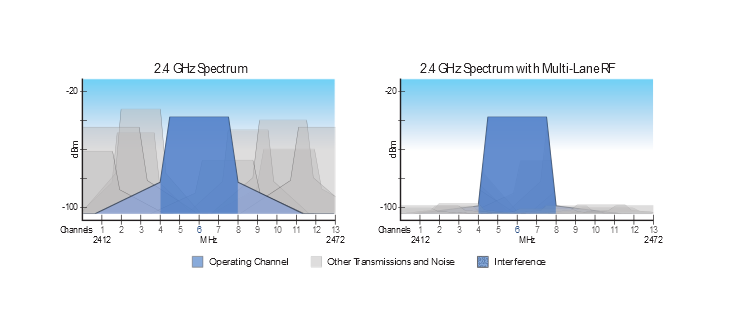

Multi-Lane RF Technology Wireless client devices in high-density areas experience significant interference and noise stemming from multiple APs using the same operating band. With the launch of the UniFi AP-Outdoor+, Ubiquiti Networks introduces our patented Multi-Lane RF™ technology, which optimizes the operating channel and rejects interference using specialized circuitry, the High-Selectivity Receiver (HSR). Our innovative Multi-Lane RF technology isolates signalson the operating channel and removes adjacent channel interference. Wireless capacity and throughput areincreased in high-density areas, and multiple APs can operate in close proximity.
When the UniFi AP-Outdoor+ operates on channel 6, its HSR filter specifically eliminates all non-channel 6 frequencies, creating a clean spectrum with minimal noise. So with Multi-Lane RF technology, you truly have three high-speed, multi-lane channels (1, 6, and 11) available for superior capacity and throughput.
