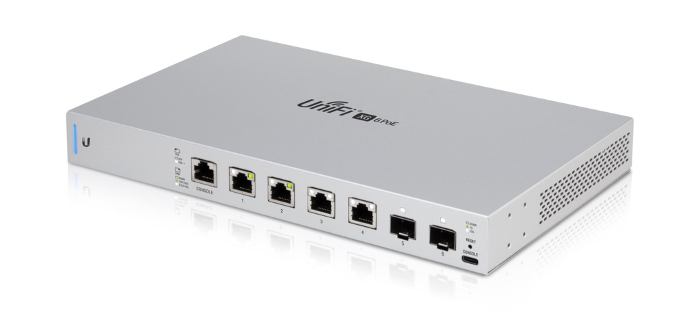

Ubiquiti UniFi XG 6PoE (US‑XG‑6POE)

$0.00

Technical Specifications
Dimensions 4165 x 268.1 x 31.8 mm
Weight 1.3 kg
Interfaces 4x 100/1000 Mbps and 2.5/5/10G RJ45
2x 1/10G SFP+
Management Ethernet In-Band
(1) RJ45 Serial Port Out-of-Band
(1) USB Type C Port Out-of-Band
Power Method 54VDC, 3.88A Power Adapter (Included) or DC Input with Terminal Block
Power Supply External AC/DC Adapter (Included) or DC Power Source
Supported Voltage Range 44 to 57VDC
Max. Power Consumption 40W (Excluding PoE Output)
LEDs System – Status
RJ45 Data Ports – PoE; Speed/Link/Activity
SFP+ Data Ports – Link/Activity
ESD/EMP Protection Air: ± 18 kV, Contact: ± 12 kV
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 do 95% Noncondensing
Certifications CE, FCC, IC
PoE Out PoE++ IEEE 802.3bt – Up to 60W per port, 50-57V
IEEE 802.3af – 44-57V

Add to wishlist
Compare
Categories: , , ,
Description

Description

UBNT-US-XG-6POE
Build and expand your network with the Ubiquiti UniFi Switch XG 6POE, model US-XG-6POE. It is a fully managed, 6-port, 10G switch with 802.3bt PoE++. For deployment versatility, four 10G RJ45 ports offer 802.3bt PoE++ for powering devices, and two SFP+ ports are designed for high-capacity fiber uplinks.
The UniFi Switch XG 6POE offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. The switch features a total non-blocking throughput of up to 60 Gbps. The UniFi Switch XG 6POE is compatible with devices requiring 802.3af or 802.3at, as well as the following UniFi Access Points (APs), which require 802.3bt power.

Main features:

(4) 100/1000 Mbps and 2.5/5/10G RJ45 Ports
(2) 1/10 SFP+ Ports
(4) 802.bt PoE++ Ports
Non-Blocking Throughput: 60 Gbps
Switching Capacity: 120 Gbps
Forwarding Rate: 89.3 Mpps
Maximum Power Consumption 40W
External 210W AC/DC Adapter (Included)
DC Input Option (Redundant or Stand-Alone)
