Waterproof IP55, IP66 RJ-45 Ethernet Connector
Click to enlarge

UniFi UAP-AC EDU 4-pack (UAP-AC-EDU-4)

$0.00

Technical Specification:
Dimensions 287.5 x 287.5 x 125.9 mm
Weight 1800 g
Ports Ethernet (Auto MDX, auto-sensing 10/100/1000 Mbps)
Buttons Reset
Antennas 3 Integrated, 3 dBi each (supports 3×3 MIMO with spatial diversity)
Wi-Fi Standards 802.11 b/g/n/ac
Power Method Passive Power over Ethernet (48V)
Power Supply 48V 0.5A PoE Adapter (not included)
Maximum Power Consumption 20W
Max TX Power
2.4 GHz
5 GHz
22 dBm
22 dBm
BSSID Up to four per radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
Certifications CE, FCC, IC
Mounting Wall/Ceiling (Kits included)
Operating Temperature -10°C to 70°C (14°F to +158° F)
Operating Humidity 5% – 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS WLAN prioritization
Guest Traffic Isolation Supported
WMM Voice, video, best effort, and background
Concurrent Clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n MCS0 – MCS23 (6.5 Mbps do 450 Mbps), HT 20/40
802.11ac MCS0 – MCS9 (6.5 Mbps do 867 Mbps), VHT 20/40/80
802.11b 1, 2, 5.5, 11
802.11g 6, 9, 12, 18, 24, 36, 48, 54
Loudspeaker Acoustics
Sensitivity 94 dB (1W/1m)
Maximum SPL 103 dB @ 1m
Frequency Response 100 – 20000 Hz
Type Two-Way Speaker with Second-Order HP Filter
Microphone Acoustics
Sensitivity -40 dB
Polar Pattern Omni
Frequency Response 50 – 20000 Hz

Add to wishlist
Compare
Categories: , ,
Description

Description

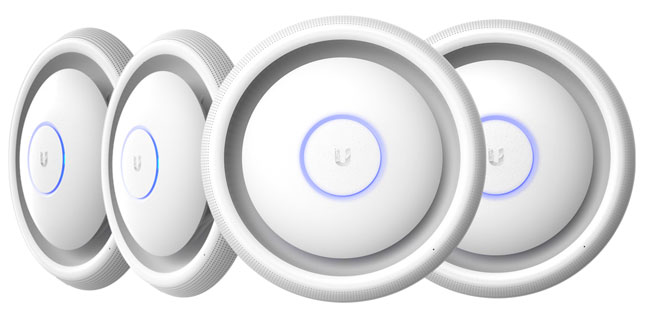

Ubiquiti UniFi AC EDU
Scalable Enterprise WiFi System with Revolutionary Software Controller The UniFi Enterprise WiFi System is a scalable enterprise access point solution designed to be easily deployed and managed. The Access Point has a sleek design and can be easily mounted to a ceiling tile or wall using the included mounting hardware. It is powered using the included Power over Ethernet adapter so that you can provide power and data using a single cable. The UniFi Enterprise WiFi System includes the UniFi Controller software. The software installs on any PC within the network and is easily accessible through any standard web browser. Using the UniFi Controller software, an Enterprise WiFi network can be instantly configured and administered without any special training. Real-time status, automatic UniFi device detection, map loading, and advanced security options are all seamlessly integrated.

Buying UBNT-UAP-AC-EDU-4 you get four UBNT-UAP-AC-EDU in one box without power supply.
Features

Aestheitic industrial design with unique LED provisioning ring
Ideal for use in educational institutions (universities, schools) as a system of radio-node
Sleek wall-mountable and ceiling tile mountable design (all accessories included)
Includes Power over Ethernet capability for single cable wiring (supplies both power and data)
Virtual UniFi Controller software interface (no expensive WiFi hardware controller/switch needed)
Highly intuitive setup and configuration with many powerful features (no special training needed)
Scalable to hundreds of devices while maintaining a single unified management system
