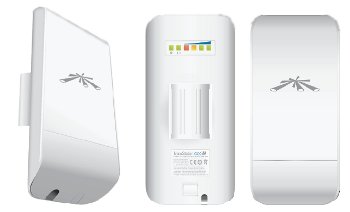

Ubiquiti NanoStation Loco M5 (LocoM5)

$0.00

Technical Specification:
Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Operating frequency 5470MHz – 5825MHz
Enclosure Size 163 x 31 x80
Weight 0.18kg
Enclosure Characteristics Outdoor UV Stabalized Plastic
Mounting Kit Pole Mounting Kit included
Max Power Consumption 5.5 Watts
Power Supply 24V, 0.5A surge portection integrated POE adapter included
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -30C to +80C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4

Integrated Anntena:
Frequency Range 4.9-6.0 GHz
Max VSWR 1.4:1
Gain 13 dBi
Polarization Dual Linear
Cross-pol Isolation 20dB minimum
H-pol Beamwidth 45 deg.
V-pol Beamwidth 45 deg.
Elevation Beamwidth 45 deg.

Add to wishlist
Compare
Categories: ,
Description

Description

Ubiquiti Loco M5
Ubiquiti Loco M5
Performance Breakthrough
150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2×2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.

New Leading-Edge Industrial Design
The original NanoStation set the bar for the world’s first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Next-Gen Antenna Design
New antenna array designs featuring 13dBi dual-polarity gain at 5GHz. Both with optimized cross-polarity isolation and in a compact form-factor.

Dual Ethernet Connectivity
The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.

Intelligent POE
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti’s Instant 802.3af adapter.

AirOS V Version 5 of Ubiquiti’s AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
