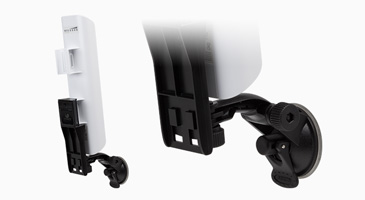

Ubiquiti Window/Wall Mounting Kit (NS-WM) $0.00
Next product
Ubiquiti airFiber X Antenna 5 GHz (AF-5G30-S45) $0.00
Click to enlarge

Ubiquiti PowerBeam 2AC-400 (PBE-2AC-400)

$0.00

Specifications:
Dimensions
with Radome 420 x 420 x 289 mm
(16.54 x 16.54 x 11.38″)
Weight (Mount Included) 1.795 kg (4.809 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 7.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 22 to 26 VDC
Gain 18 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes 10/20/40 MHz (both PtP and PtMP Modes)
Enclosure Characteristics Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
Certifications CE, FCC, IC
Operating Frequency (MHz) 2412-2472 (Worldwide)
Management Radio (MHz) 5150-5250 (Worldwide)

Add to wishlist
Compare
Categories: ,
Description

Description

Ubiquiti PowerBeam 2AC 400

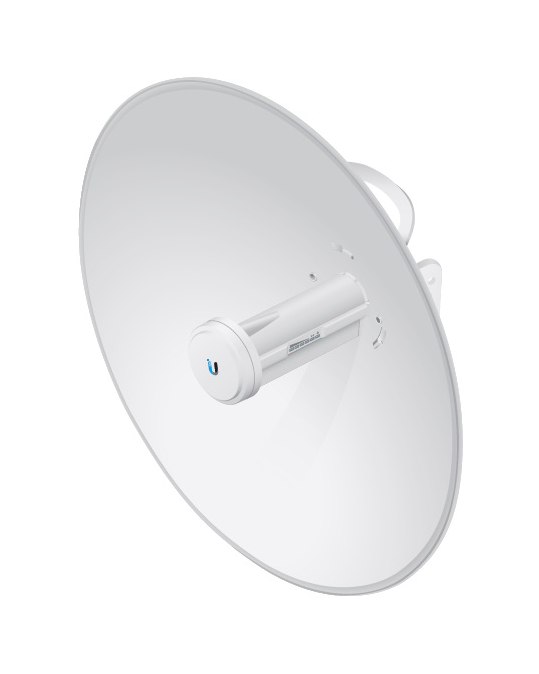

PowerBeam AC GEN2 (PBE-5AC-GEN2) Ubiquiti
Ubiquiti Networks launches the second generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management.

The PowerBeam 2AC Gen 2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 2AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative design, the PowerBeam 2AC Gen 2 is versatile and cost-effective to deploy.
The second generation devices work under airOS® v8 software – the revolutionary operating system for Ubiquiti® airMAX ac products.
